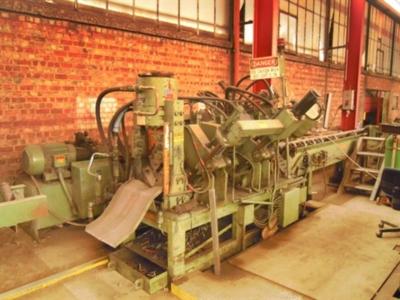

Линия для обработки уголка Peddinghaus Anglemaster, AFPS-643 с ЧПУ

Technical Specifications for Cutting and Punching of Angles

• Punching Force: 75 tons

• Maximum Sheet Diameter x Thickness: 15 mm

• Maximum Stroke Length: 44 mm

• Throat Depth: 133 mm

• Maximum Hole Diameter: 31.75 mm

• Maximum Sheet Thickness: 15 mm

Additional Information

The Peddinghaus Anglemaster is designed to handle a wide range of applications, including automatic positioning, punching, shearing to length, and marking of various metal shapes such as angles, flats, and channels.

• Angle Dimensions:

  • Maximum: 160 mm x 160 mm x 15 mm

  • Minimum: 40 mm x 40 mm x 3 mm

• Flat Dimensions:

  • Maximum: 160 mm x 15 mm

  • Minimum: 50 mm x 6 mm

• Punching Capacities: 75 tons

• Throat Depth: 133 mm

• Stroke Length: 44 mm

• Maximum Sheet Thickness: 15 mm

• Maximum Hole Diameter: 31.75 mm

• Shearing Capacities: 230 tons

• Tooling Style: Single-cut (Single-cut configuration)
